10m Inflatable Spray Booth – 5m Wide Dual Blower
Create a substantial temporary painting workspace with this 10m inflatable spray booth, featuring separate inflation and ventilation blowers, a large working room and a dedicated isolation chamber. Measuring 10m long x 5m wide x 3.5m high when fully inflated, it offers generous internal space for suitable automotive, furniture and larger finishing projects.
Why You’ll Love This 10m Inflatable Spray Booth
- Large 10m x 5m x 3.5m external dimensions

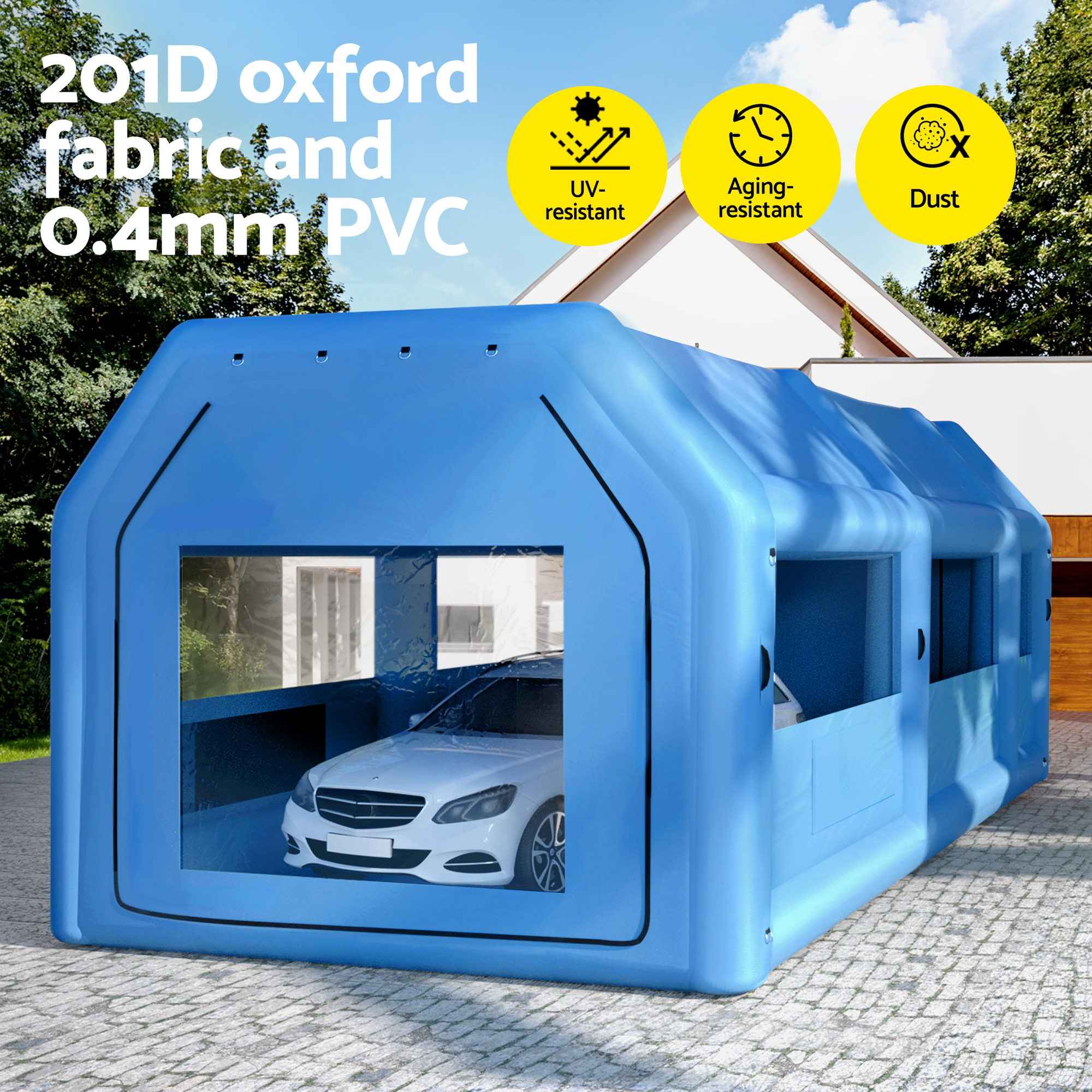

- 201D Oxford fabric and PVC construction
- 1100W inflation blower
- 370W ventilation blower
- Separate working room and isolation chamber
- Air filtration system
- Two filtration windows
- Six transparent windows
- Large front access door
- Rear access door
- Deflation port
- Lamp-hanging ring
- Door-hanging hook
- Portable handle
- Carry bag included
- One-year warranty
10m Inflatable Spray Booth for Larger Projects
The generous dimensions make this booth suitable for larger temporary painting and finishing setups where substantial internal working space is required.

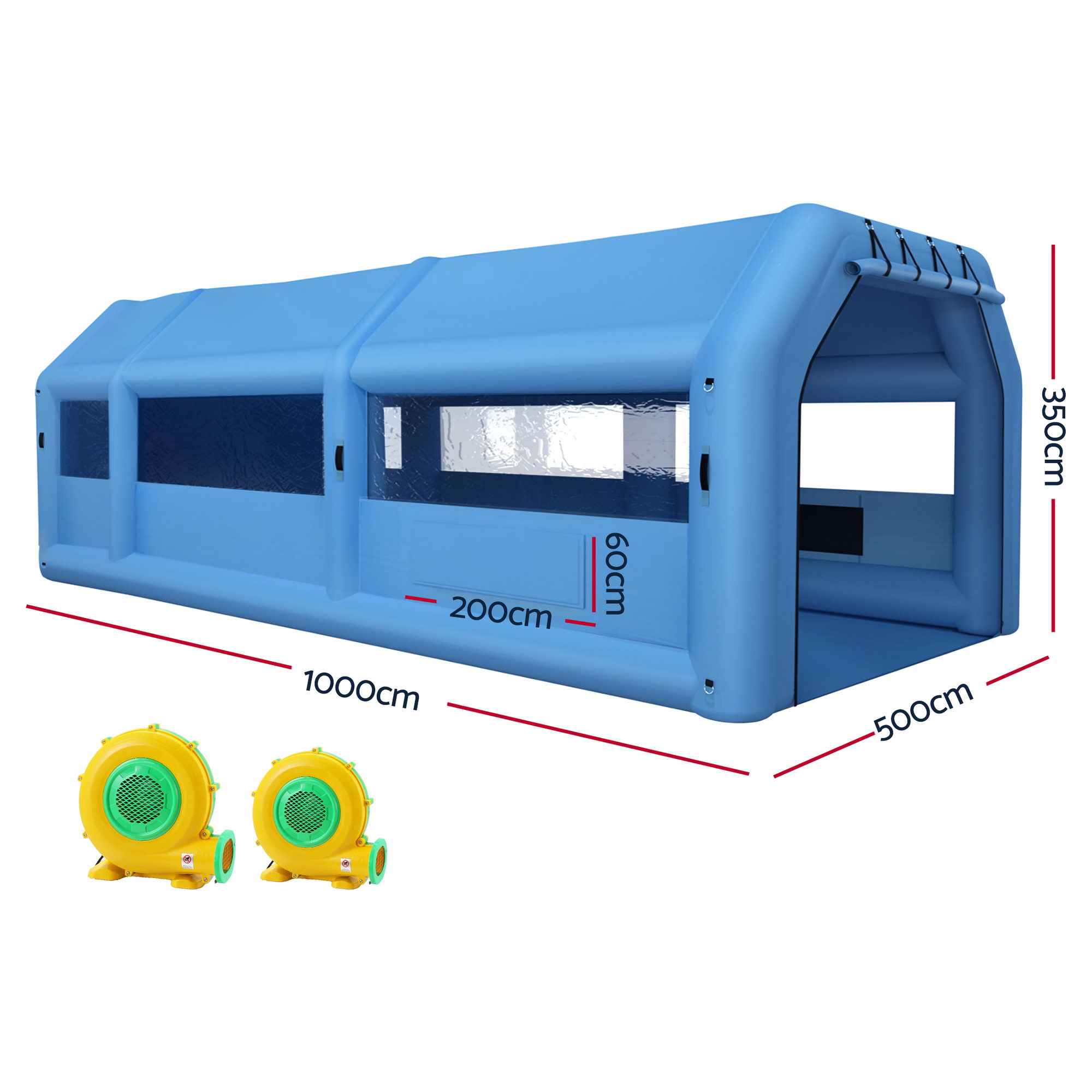

Its fully inflated external size is approximately 10m long x 5m wide x 3.5m high.
Explore more sizes and configurations in the Vartiss Store Spray & Paint Booths collection.

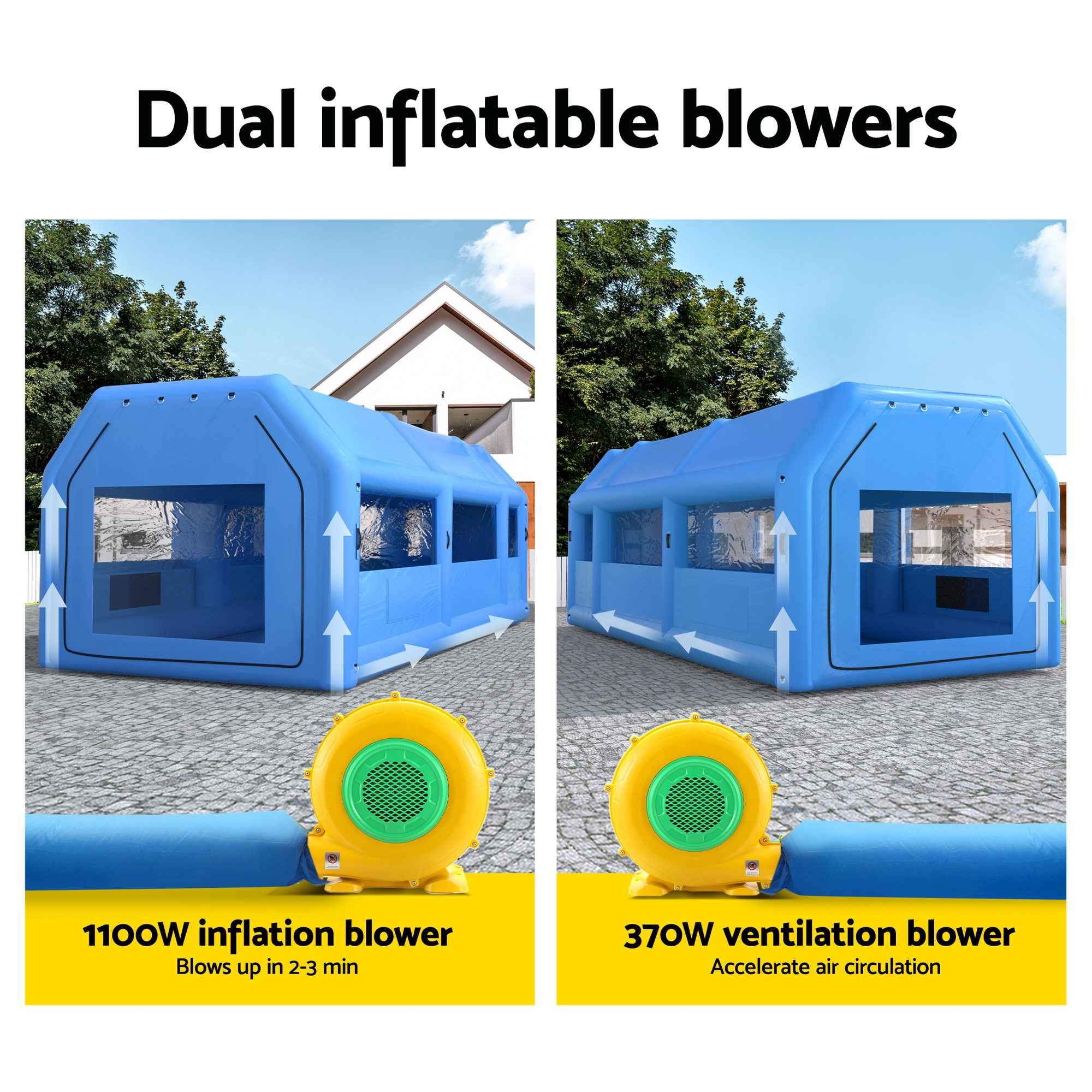

Large Inflatable Spray Booth with Dual Blowers

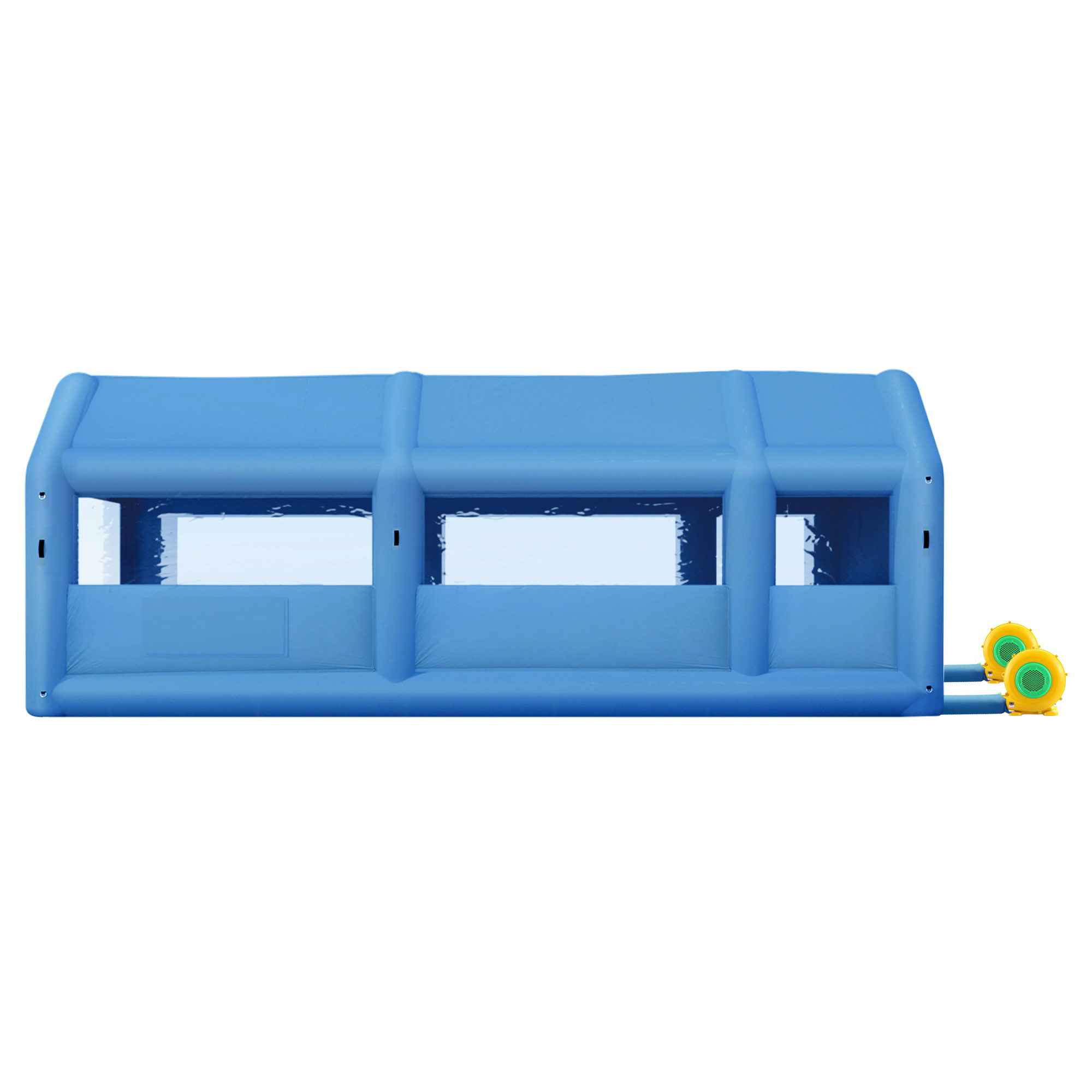

Two electric blowers are included with the booth.
The 1100W blower is used to inflate and support the structure, while the separate 370W ventilation blower assists with airflow through the enclosed workspace.
The inflation blower must remain operating whenever the booth is erected for use so the inflatable structure remains supported.
10m Inflatable Spray Booth with 7.8m Working Room
The main working room measures approximately 7.8m x 3.8m x 2.9m.
This provides a long internal working zone for appropriately sized vehicles, furniture, parts or other painting projects.
Before ordering, compare the stated internal dimensions carefully with the item you intend to place inside the booth.
Separate Isolation Chamber
The booth also includes an isolation chamber measuring approximately 1.7m x 5m x 3.5m.
This provides an additional internal zone rather than one completely open enclosure.
However, the supplier does not provide tested containment, pressure-control or separation ratings. Therefore, the isolation chamber should not be described as preventing all vapours, overspray or airborne particles from moving between areas.

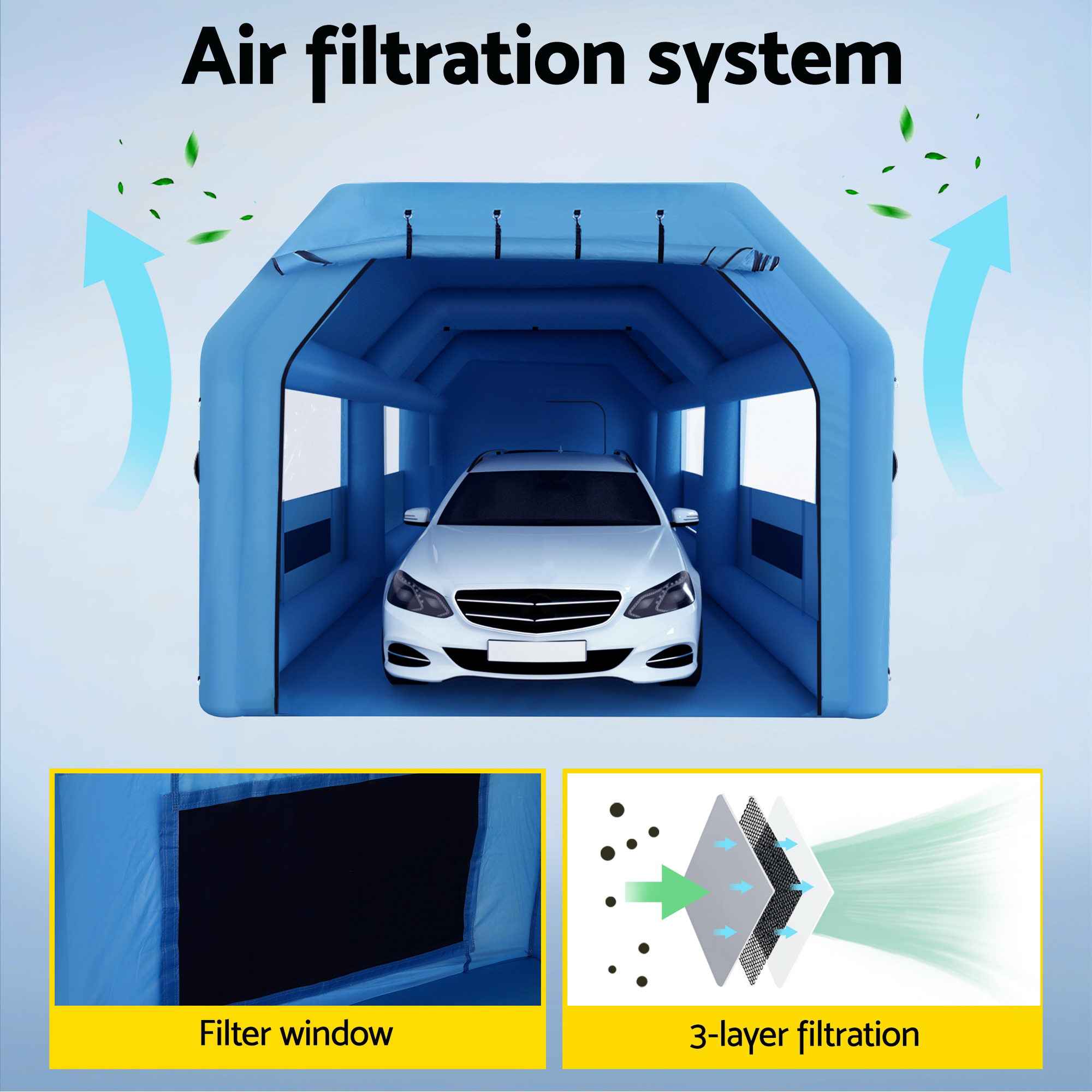

10m Inflatable Spray Booth with Air Filtration
The design incorporates an air-filtration system together with two filtration windows.
These features are intended to assist with airflow management and airborne material control during suitable use.
However, the supplied specifications do not provide filtration efficiency, airflow volume, hazardous-area certification or confirmation of compliance with an Australian spray-booth standard. Therefore, the booth should not be described as removing all harmful particles or vapours.

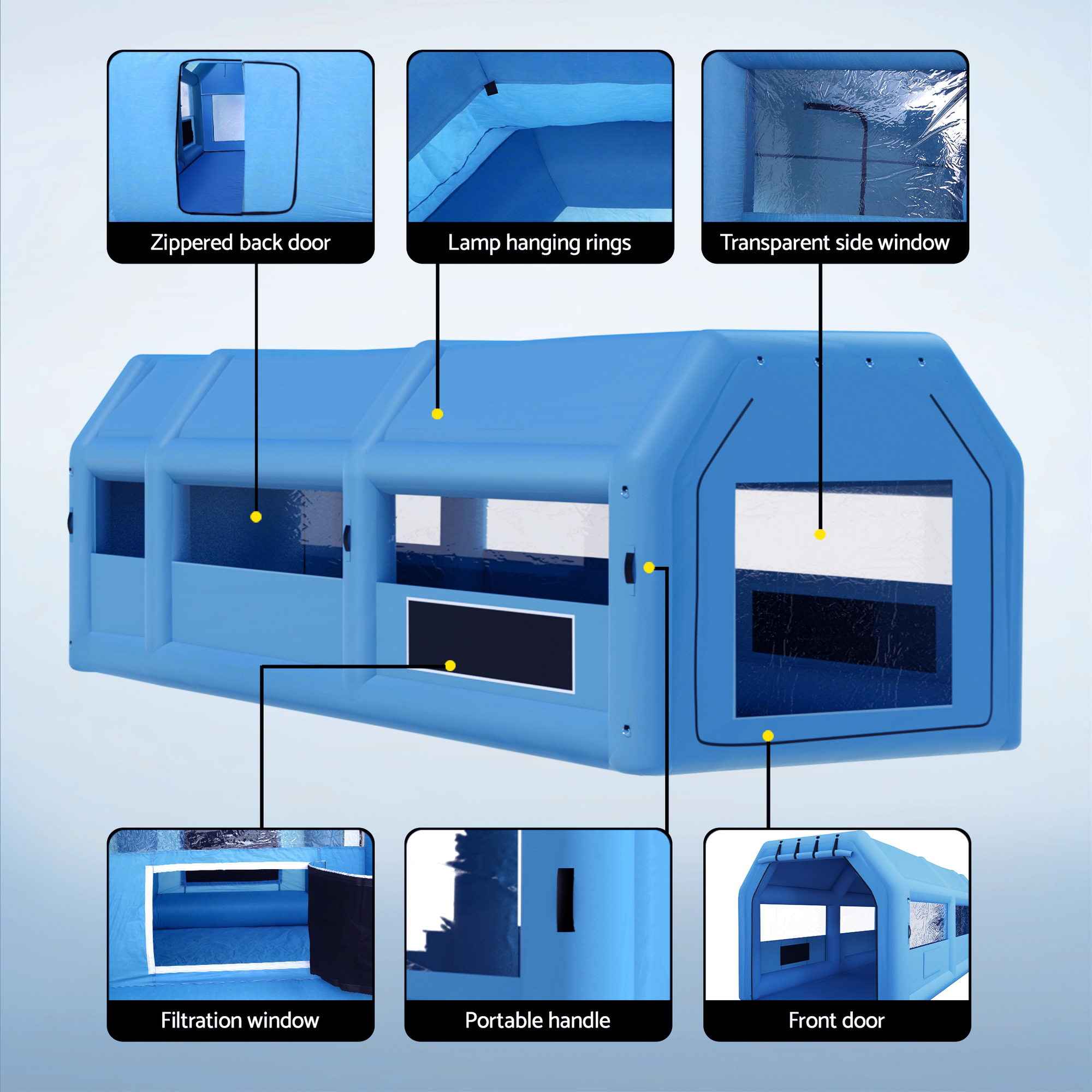

Six Transparent Viewing Windows
Six transparent windows allow ambient light into the enclosure and provide visibility through the booth walls.
A lamp-hanging ring is also provided for compatible lighting arrangements where appropriate.
Any electrical equipment used around spray painting should be suitable for the chemicals, vapours and working environment involved.
Front and Rear Access
A large front opening provides the main access point into the booth.
Meanwhile, the zippered rear door provides another entry or exit point during setup and suitable work.
A door-hanging hook is also incorporated into the design.
Portable Inflatable Paint Booth with Carry Bag
A dedicated deflation port assists with collapsing the structure once work is complete.
The booth also includes a carry bag and portable handle for storage and transport.
The stated net weight is 55kg, so appropriate manual-handling techniques should be used when moving the packed booth.
Important Spray Painting Safety Guidance
Spray painting can involve hazardous chemicals, flammable vapours and airborne particles depending on the paint or coating being used.
Safe Work Australia advises workplaces to identify hazards, assess risks where necessary, implement suitable control measures and maintain those controls throughout spray-painting work.
For safer use:
- Read the supplied instructions before setup and operation.
- Keep the inflation blower operating whenever the booth is in use.
- Check the paint or coating manufacturer’s Safety Data Sheet.
- Use appropriate respiratory, eye, skin and other protective equipment.
- Keep ignition sources away from flammable paints and vapours.
- Keep ventilation and filtration openings unobstructed.
- Keep unprotected people away from the spray area.
- Do not assume the filtration system removes all hazardous vapours or particles.
- Use electrical equipment suitable for the spray-painting environment.
- Maintain adequate ventilation throughout the painting process.
- Do not use the booth in unsuitable weather or where it cannot be safely secured.
See the Safe Work Australia Spray Painting and Powder Coating Code of Practice for detailed guidance on spray-painting risk controls, hazardous chemicals and ventilation.
Specifications
- Colour: Blue
- Material: Oxford fabric and PVC
- Oxford fabric: 201D
- PVC thickness: 0.4mm
- Inflation blower power: 1100W
- Ventilation blower power: 370W
- External size when fully inflated: 10m x 5m x 3.5m
- Working room size: 7.8m x 3.8m x 2.9m
- Isolation chamber size: 1.7m x 5m x 3.5m
- Net weight: 55kg
- Filtration windows: 2
- Transparent windows: 6
Package Contents
- 1 x Inflatable spray booth
- 2 x Blowers
- 1 x Set of installation accessories
- 1 x User instruction
Warranty
This product comes with a one-year warranty.
Create a large temporary spray-painting workspace with dual blowers, separate internal zones and integrated filtration features.
